LargeR Coal or Wood Top Loaders

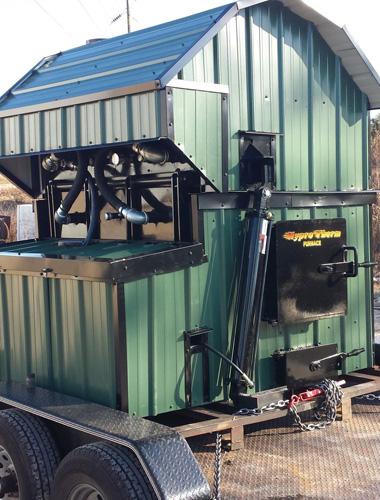

HYPROTHERM TOP LOADING CHEST TYPE HYDRONIC
The Hyprotherm, Top Loading, Chest Type series of furnaces is the only furnace in its class. All Hyprotherm top loading furnaces come with 1/2” fireboxes and 3/16” water jackets. Each comes with hydraulically opened top load fuel doors, which open with the touch of a finger. They can also be operated by remote from the comfort of your tractor seat (remote sold separately). Removable ash pan is available upon request.
These five TL models all have water in the lid.
Hyprotherm TL-433-WT 12/12
- Water Capacity: 316 gallon
- Water Jacket Thickness: 3/16”
- Firebox Capacity: 36 cubic feet
- Firebox Dimensions: ½” thick x 4’L x 3’W x 3’H
- Overall Dimensions: 58” x 72” x 86”
- Shipping Weight: 3,400 lbs Approx
- Fuel Door: 4’L x 3’W x 3’H
- Grate System: Round steel (requires 4)
- Ash Cleanout: Door only, no removable ash pan
- BTUs: 308,416 @ 180 degree
- Heatable Area: 7,500 sq ft Approx
Hyprotherm TL-553- WT 6/6
- Water Capacity; 486 gallon
- Water Jacket Thickness; 3/16”
- Firebox Capacity; 75 cubic feet
- Firebox Dimensions; ½” thick x 5’L x 5’W x 3’H
- Overall Dimensions: 70” x 96” x 86”
- Shipping Weight: 5,400 lbs Approx
- Fuel Door; 5’L x 5’W x 3’H
- Grate System; Round steel (requires 5)
- Ash Cleanout: Door only, no removable ash pan
- BTUs; 474,336 @ 180 degree
- Heatable Area; 11,500 sq ft Approx
Hyprotherm TL-633 WT- 6/6
- Water Capacity: 425 gallon
- Water Jacket Thickness: 3/16”
- Firebox Capacity: 54 cubic feet
- Firebox Dimensions: ½” thick x 6’L x 3’W x 3’
- Overall Dimensions: 82” x 72” x 86”
- Shipping Weight: 5,800 lbs Approx
- Fuel Door: 6’L x 3’W x 3’H
- Grate System: Round steel (requires 6)
- Ash Cleanout: Door only, no removable ash pan
- BTUs: 416,752 @ 180 degree
- Heatable Area: 10,000 sq ft Approx
Hyprotherm TL-934 WT 6/6
- Water Capacity: 699 gallon
- Water Jacket Thickness: 3/16”
- Firebox Capacity: 108 cubic feet
- Firebox Dimensions: ½” thick x 9’L x 3’W x 4’H
- Overall Dimensions: 118” x 72” x 98”
- Shipping Weight: 9,200 lbs
- Fuel Door: 9’L x 3’W x 4’H
- Grate System: Round steel (requires 9)
- Ash Cleanout: Door only, no removable ash pan
- BTUs: 783,230 @ 180 degree
- Heatable Area: 19,000 sq ft Approx
Hyprotherm TL-1054-WT 6/6
- Water Capacity: 951 gallon
- Water Jacket Thickness: 3/16”
- Firebox Capacity: 216 cubic feet
- Firebox Dimensions: ½” thick x 6’L x 6’W x 6’H
- Overall Dimensions: 82” x 108” x 122”
- Shipping Weight: 9,900 lbs
- Fuel Door: 6’L x 6’W x 6’H
- Grate System: Round steel (requires 6)
- Ash Cleanout: Door only, no removable ash pan
- BTUs: 1,065,596 @ 180 degree
- Heatable Area: 26,639 sq ft Approx

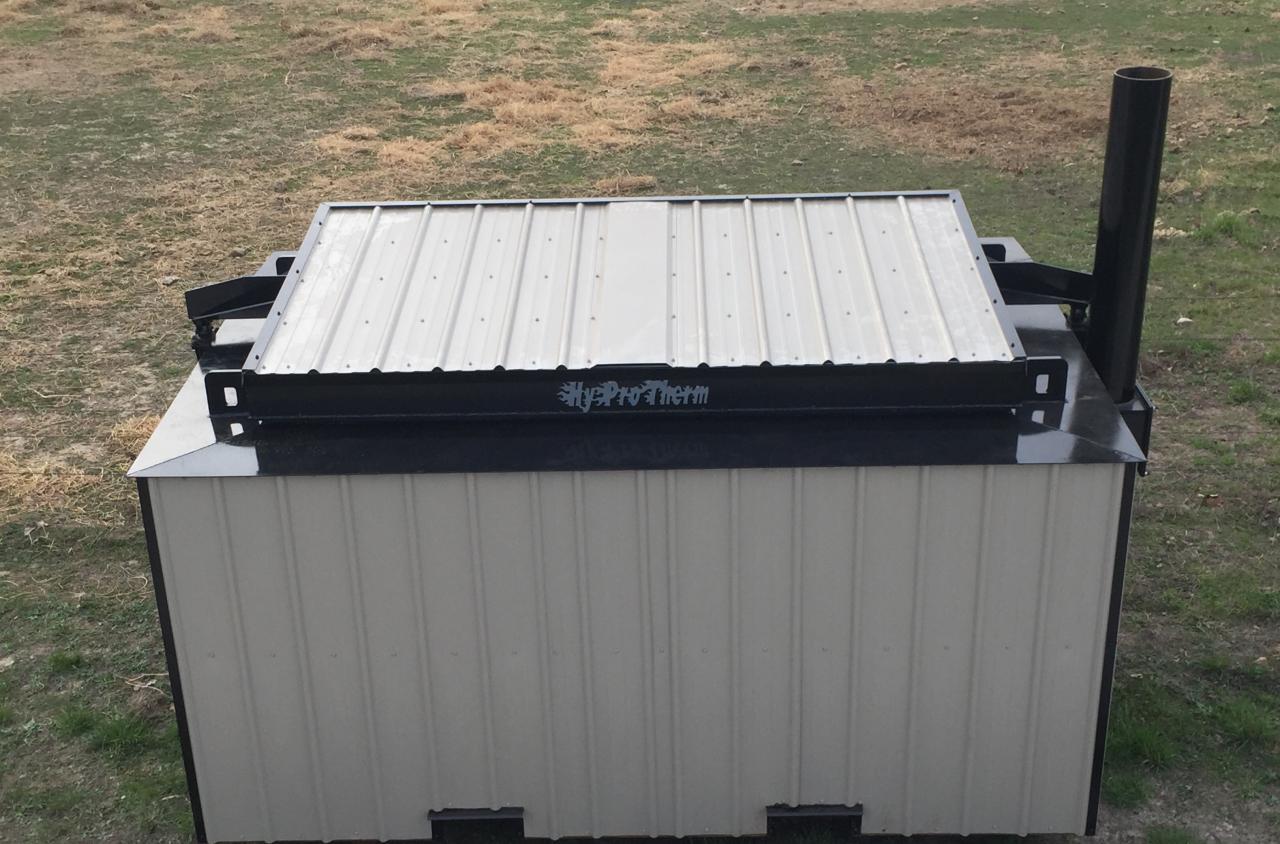

HYPROTHERM TOP LOADING COMMERCIAL HYDRONIC
The Hyprotherm, Top Loading, Commercial Hydronic series is a new concept based on our Chest Loading series. All of these top loading furnaces come with easy opening, gas spring assisted fuel doors. They have 1/2” thick fireboxes which set vertically inside the water jacket. This allows for the Top Loading fuel door and an economical complete burning fire. The water jacket bottoms are 1/2” steel just like the fire box, and the sides and top of the water jacket are 3/16”. They have cast iron shaker grates and will burn either coal or wood. They have removable ash pans to make ash removal simple. Each furnace is pre-wired with only one connection to a power supply necessary, making them basically plug and play simple. Each comes with; lock down vault assembly door latch, two 1” supply and two 1” return nipples. Also includes a water level sight gauge and a digital thermostat to control the combustion blower.
TOP LOADING COMMERCIAL HYDRONIC MODELS:
Hyprotherm TLCH-1500
- Water Capacity: 125 gallon
- Water Jacket Thickness Bottom: ½”
- Water Jacket Thickness Sides and Top: 3/16”
- Firebox Capacity: 10.1 cubic feet
- Firebox Dimensions: ½” thick x 27” x 28.25”
- Overall Dimensions: 38” x 69” x 72”
- Shipping Weight: 1,428 lbs Approx
- Fuel Door: 27” x 25”
- Grate System: Shaker (requires 1 set)
- Ash Cleanout: Removable Ash Pan
- BTUs: 138900 @ 180 degree
- Heatable Area: 1,500 sq ft Approx
Hyprotherm TLCH-3500
- Water Capacity: 130 gallon
- Water Jacket Thickness Bottom: ½”
- Water Jacket Thickness Sides and Top: 3/16”
- Firebox Capacity: 12.48 cubic feet
- Firebox Dimensions: ½” thick x 28” x 28.25”
- Overall Dimensions: 39” x 70” x 72”
- Shipping Weight: 1,696 lbs Approx
- Fuel Door: 28” x 28”
- Grate System: Shaker (requires 1 set)
- Ash Cleanout: Removable Ash Pan
- BTUs: 145,600 @ 180 degree
- Heatable Area: 3,500 sq ft Approx
Hyprotherm TLCH-4500
- Water Capacity: 182 gallon
- Water Jacket Thickness Bottom: ½”
- Water Jacket Thickness Sides and Top: 3/16”
- Firebox Capacity: 15.31 cubic feet
- Firebox Dimensions: ½” thick x 31” x 28.25”
- Overall Dimensions: 40” x 71” x 72”
- Shipping Weight: 2,093 lbs Approx
- Fuel Door: 31” x 31”
- Grate System: Shaker (requires 1 set)
- Ash Cleanout: Removable Ash Pan
- BTUs: 203,900 @ 180 degree
- Heatable Area: 4,500 sq ft Approx
Hyprotherm TLCH-5500
- Water Capacity: 228 gallon
- Water Jacket Thickness Bottom: ½”
- Water Jacket Thickness Sides and Top: 3/16”
- Firebox Capacity: 18.42 cubic feet
- Firebox Dimensions: ½” thick x 34” x 28.25”
- Overall Dimensions: 41” x 73” x 72”
- Shipping Weight: 2,556 lbs Approx
- Fuel Door: 34” x 34”
- Grate System: Shaker (requires 1 set)
- Ash Cleanout: Removable Ash Pan
- BTUs: 255,400 @ 180 degree
- Heat able Area: 5,500 sq ft Approx
Hyprotherm TLCH-6800
- Water Capacity: 275 gallon
- Water Jacket Thickness Bottom: ½”
- Water Jacket Thickness Sides and Top: 3/16”
- Firebox Capacity: 21.88 cubic feet
- Firebox Dimensions: ½” thick x 37” x 28.25”
- Overall Dimensions: 41” x 75” x 72”
- Shipping Weight: 2,861 lbs Approx
- Fuel Door: 37” x 37”
- Grate System: Shaker (requires 1 set)
- Ash Cleanout: Removable Ash Pan
- BTUs: 308,100 @ 180 degree
- Heatable Area: 6,800 sq ft Approx
Hyprotherm TLCH-8500
- Water Capacity: 303 gallons
- Water Jacket Thickness Bottom: ½”
- Water Jacket Thickness Sides and Top: 3/16”
- Firebox Capacity: 27 cubic feet
- Firebox Dimensions: ½” thick x 41” x 28.25”
- Overall Dimensions: 42” x 77” x 72”
- Shipping Weight: 3,314 lbs Approx
- Fuel Door: 41” x 36”
- Grate System: Shaker (requires 1 set)
- Ash Cleanout: Removable Ash Pan
- BTUs: 339,500 @ 180 degree
- Heatable Area: 8,500 sq ft Approx
