Smaller Coal or Wood Top Loaders

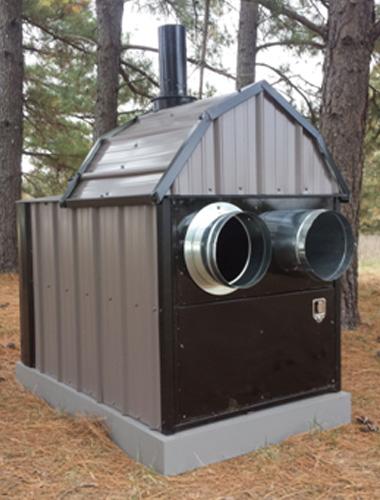

HYPROTHERM TOP LOADING RESIDENTIAL COAL OR WOOD FORCED AIR

HYPROTHERM TOP LOADING RESIDENTIAL COAL OR WOOD FORCED AIR

The Hyprotherm, Top Loading, Residential (coal or wood) Forced Air series is a new concept based on our Chest Loading series. All of these top loading furnaces come with easy opening, gas spring assisted fuel doors. They have 3/8” thick fireboxes which set vertically inside the air jacket. This allows for the Top Loading fuel door and an economical complete burning fire. The air jacket is 1/8” steel top, bottom and sides. They have cast iron shaker grates and are designed to burn coal or wood. They have removable ash pans to make ash removal simple. Each furnace is pre-wired with only one connection to a power supply and one connection to your home thermostat necessary, making them basically plug and play simple.

HYPROTHERM TOP LOADING RESIDENTIAL COAL OR WOOD FORCED AIR MODELS:

Hyprotherm TLFA-1500

  • Air Jacket: 1/8”
  • Firebox Capacity: 10.1 cubic feet
  • Firebox Dimensions: 3/8” thick x 27” x 28.25”
  • Overall Dimensions: 38” x 74” x 72”
  • Shipping Weight: 1,440 lbs Approx
  • Fuel Door: 24” x 24”
  • Grate System: Shaker
  • Ash Cleanout: Removable Ash Pan
  • BTUs: 138,900
  • Heatable Area: 1,500 sq ft Approx
  • Retail: $4,900

Hyprotherm TLFA-3500

  • Air Jacket: 1/8”
  • Firebox Capacity: 12.48 cubic feet
  • Firebox Dimensions: 3/8” thick x 28” x 28.25”
  • Overall Dimensions: 39” x 75” x 72”
  • Shipping Weight: 1,688 lbs Approx
  • Fuel Door: 24” x 24”
  • Grate System: Shaker
  • Ash Cleanout: Removable Ash Pan
  • BTUs: 145,600
  • Heatable Area: 3,500 sq ft Approx
  • Retail: $6,125

Hyprotherm TLFA-4500

  • Air Jacket: 1/8”
  • Firebox Capacity: 15.31 cubic feet
  • Firebox Dimensions: 3/8” thick x 31” x 28.25”
  • Overall Dimensions: 40” x 76” x 72”
  • Shipping Weight: 2,057 lbs Approx
  • Fuel Door: 24” x 24”
  • Grate System: Shaker
  • Ash Cleanout: Removable Ash Pan
  • BTUs: 203,900
  • Heatable Area: 4,500 sq ft Approx
  • Retail: $6,775

Hyprotherm TLFA-5500

  • Air Jacket: 1/8”
  • Firebox Capacity: 18.42 cubic feet
  • Firebox Dimensions: 3/8” thick x 34” x 28.25”
  • Overall Dimensions: 41” x 78” x 72”
  • Shipping Weight: 2,485 lbs Approx
  • Fuel Door: 24” x 24”
  • Grate System: Shaker
  • Ash Cleanout: Removable Ash Pan
  • BTUs: 255,400
  • Heatable Area: 5,500 sq ft Approx
  • Retail: $7,370

Hyprotherm TLFA-6800

  • Air Jacket: 1/8”
  • Firebox Capacity: 21.88 cubic feet
  • Firebox Dimensions: 3/8” thick x 37” x 28.25”
  • Overall Dimensions: 41” x 81” x 72”
  • Shipping Weight: 2,753 lbs Approx
  • Fuel Door: 24” x 24”
  • Grate System: Shaker
  • Ash Cleanout: Removable Ash Pan
  • BTUs: 308,100
  • Heatable Area: 6,800 sq ft Approx
  • Retail: $8,070

Hyprotherm TLFA-8500

  • Air Jacket: 1/8”
  • Firebox Capacity: 27 cubic feet
  • Firebox Dimensions: 3/8” thick x 41” x 28.25”
  • Overall Dimensions: 42” x 82” x 72”
  • Shipping Weight: 3,153 lbs Approx
  • Fuel Door: 24” x 24”
  • Grate System: Shaker
  • Ash Cleanout: Removable Ash Pan
  • BTUs: 339,500
  • Heatable Area: 8,500 sq ft Approx
  • Retail: $9,170

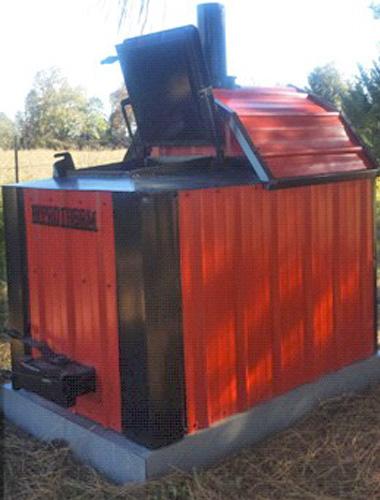

HYPROTHERM TOP LOADING, RESIDENTIAL (COAL ONLY) HYDRONIC

HYPROTHERM TOP LOADING, RESIDENTIAL (COAL ONLY) HYDRONIC

The Hyprotherm, Top Loading, Residential (coal only) Hydronic series is a new concept based on our Chest Loading series. All of these top loading furnaces come with easy opening, gas spring assisted fuel doors. They have 3/8” thick fireboxes which set vertically inside the water jacket. This allows for the Top Loading fuel door and an economical complete burning fire. The water jacket bottoms are 3/8” steel just like the fire box, and the sides and top of the water jacket are 3/16”. They have cast iron shaker grates and are designed to burn coal only. They have removable ash pans to make ash removal simple. Each furnace is pre-wired with only one connection to a power supply necessary, making them basically plug and play simple. Each comes with; lock down vault assembly door latch, two 1” supply and two 1” return nipples. Also includes a water level sight gauge and a digital thermostat to control the combustion blower.

Hyprotherm TLRH-1500

  • Water Capacity: 125 gallon
  • Water Jacket thickness bottom: 3/8”
  • Water Jacket thickness sides and top: 3/16”
  • Firebox Capacity: 10.1 cubic feet
  • Firebox Dimensions: 3/8” thick x 27” x 28.25”
  • Overall Dimensions: 38” x 69” x 72”
  • Shipping Weight: 1,338 lbs Approx
  • Fuel Door: 24” x 24”
  • Grate System: Shaker
  • Ash Cleanout: Removable Ash Pan
  • BTUs: 138,900 @ 180 degree
  • Heatable Area: 1,500 sq ft Approx
  • Retail: $4,900

Hyprotherm TLRH-3500

  • Water Capacity: 130 gallon
  • Water Jacket thickness bottom: 3/8”
  • Water Jacket thickness sides and top: 3/16”
  • Firebox Capacity: 12.48 cubic feet
  • Firebox Dimensions: 3/8” thick x 28” x 28.25”
  • Overall Dimensions: 39” x 70” x 72”
  • Shipping Weight: 1,588 lbs Approx
  • Fuel Door: 24” x 24”
  • Grate System: Shaker
  • Ash Cleanout: Removable Ash Pan
  • BTUs: 145,600 @ 180 degree
  • Heatable Area: 3,500 sq ft Approx
  • Retail: $6,250

Hyprotherm TLRH-4500

  • Water Capacity: 182 gallon
  • Water Jacket thickness bottom: 3/8”
  • Water Jacket thickness sides and top: 3/16”
  • Firebox Capacity: 15.31 cubic feet
  • Firebox Dimensions: 3/8” thick x 31” x 28.25”
  • Overall Dimensions: 40” x 71” x 72”
  • Shipping Weight: 1,963 lbs Approx
  • Fuel Door: 24” x 24”
  • Grate System: Shaker
  • Ash Cleanout: Removable Ash Pan
  • BTUs: 203,900 @ 180 degree
  • Heatable Area: 4,500 sq ft Approx
  • Retail: $6,900

Hyprotherm TLRH-5500

  • Water Capacity: 228 gallon
  • Firebox Capacity: 18.42 cubic feet
  • Water Jacket thickness bottom: 3/8”
  • Water Jacket thickness sides and top: 3/16”
  • Firebox Dimensions: 3/8” thick x 34” x 28.25”
  • Overall Dimensions: 41” x 73” x 72”
  • Shipping Weight: 2,398 lbs Approx
  • Fuel Door: 24” x 24”
  • Grate System: Shaker
  • Ash Cleanout: Removable Ash Pan
  • BTUs: 255,400 @ 180 degree
  • Heatable Area: 5,500 sq ft Approx
  • Retail: $7,495

Hyprotherm TLRH-6800

  • Water Capacity: 275 gallon
  • Water Jacket thickness bottom: 3/8”
  • Water Jacket thickness sides and top: 3/16”
  • Firebox Capacity: 21.88 cubic feet
  • Firebox Dimensions: 3/8” thick x 37” x 28.25”
  • Overall Dimensions: 41” x 75” x 72”
  • Shipping Weight: 2,674 lbs Approx
  • Fuel Door: 24” x 24”
  • Grate System: Shaker
  • Ash Cleanout: Removable Ash Pan
  • BTUs: 308,100 @ 180 degree
  • Heatable Area: 6,800 sq ft Approx
  • Retail: $8,195

Hyprotherm TLRH-8500

  • Water Capacity: 303 gallon
  • Water Jacket thickness bottom: 3/8”
  • Water Jacket thickness sides and top: 3/16”
  • Firebox Capacity: 27 cubic feet
  • Firebox Dimensions: 3/8” thick x 41” x 28.25”
  • Overall Dimensions: 42” x 77” x 72”
  • Shipping Weight: 3,085 lbs Approx
  • Fuel Door: 24” x 24”
  • Grate System: Shaker
  • Ash Cleanout: Removable Ash Pan
  • BTUs: 339,500 @ 180 degree
  • Heatable Area: 8,500 sq ft Approx
  • Retail: $9,295
